1. What Data Can You See on the Controller?

• 1.1 Time Display:

Quickly check the current date and time in your grow room with ease.

• 1.2 Day/Night Icon:

See at a glance if your grow tent is in its light or dark cycle. A sun icon appears when light is detected, and a moon icon shows during dark periods. This feature allows you to monitor light conditions without opening the tent. Plus, the controller can be managed remotely through the Spider Farmer app, so you can keep tabs on your grow tent even when you're away. (Requires the temperature, humidity, and light sensor included in this GGS controller kit)

• 1.3 VPD and Temperature/Humidity Display:

Get precise readings for temperature, humidity, and Vapor Pressure Deficit (VPD). (Requires the temperature, humidity, and light sensor included in this GGS controller kit; if the sensor is not properly connected, two dashes will appear on the display.Tip: Place the sensor at canopy level in the center of your growing area for the most accurate readings.)

• 1.4 CO₂ Display:

(This kit doesn’t include the sensor needed to measure that data)

With an optional CO₂ sensor, you can directly monitor CO₂ levels, enabling you to optimize CO₂ concentration for faster growth. (Note: This sensor is sold separately and is not yet available in Europe—stay tuned.)

• 1.5 Soil Data Display:

(This kit doesn’t include the sensor needed to measure that data)

Ideal for soil growers, this display shows real-time soil temperature, moisture, and Electrical Conductivity (EC). (Note: This sensor is not included in the GGS controller kit but is part of the GGS power strip kit and is not yet available as a standalone product.)

• 1.6 PPFD Display:

(This kit doesn’t include the sensor needed to measure that data)

Please note: To see PPFD data, you'll need an extra PPFD sensor, which isn’t included in this kit. It’ll be sold separately in the future, but it's not available yet.

2. Preparations Before Configuring Device Operations

3. How to Control LED Grow Lights (G Series/ SE Series/ SF Series)

(Note: A GGS 2-in-1 Adapter is required to control LED grow lights through the GGS Controller. This adapter is included in the kit.)

• 3.1 Manually Adjust Brightness for Precise Light Control:

• Set the brightness anywhere from 10% to 100%, giving you full control over light intensity at any time. For quick shut-off, setting the brightness to 0% will turn the lights off. Any setting between 0% and 10% automatically operates at 10% brightness.

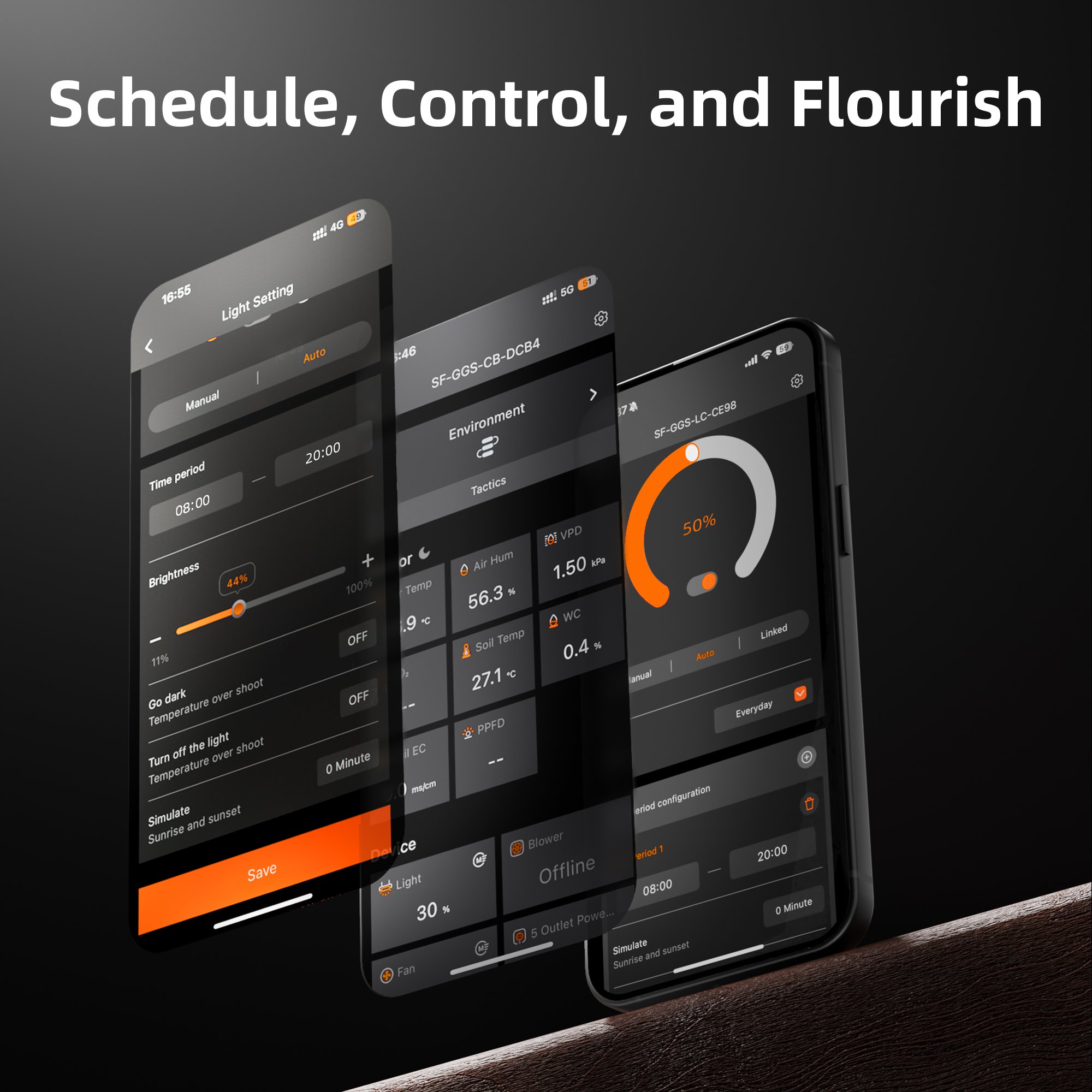

• 3.2 Automate Your Lighting Schedule:

  • 10.2.1 Start and End Times: Easily set specific on and off times for your lights, so your plants get consistent light cycles without manual adjustments.
  • 10.2.2 Brightness Levels: Define the exact brightness level for each cycle, ensuring your plants receive optimal light intensity.

• 3.3 High-Temperature Protection for Your Plants and Equipment:

  • 10.3.1 Go Dark: Set a high-temperature threshold for dimming. When the ambient temperature reaches this threshold, the lights will automatically reduce brightness to 11% to prevent overheating.
  • 10.3.2 Turn Off: Set a higher temperature threshold for complete shutdown. When this threshold is reached, the lights will automatically turn off to protect your plants and equipment.

• 3.4 Sunrise/Sunset Simulation:

Activate this feature to simulate natural light changes, with the brightness gradually increasing at sunrise and gradually decreasing at sunset.

• • Example: If you set the light schedule from 8:00 AM to 8:00 PM with brightness at 100% and a 30-minute sunrise/sunset setting, the lights will gradually increase from 0% to 100% brightness between 8:00 AM and 8:30 AM. In the evening, starting at 7:30 PM, the brightness will gradually decrease from 100% until the lights turn off completely at 8:00 PM.

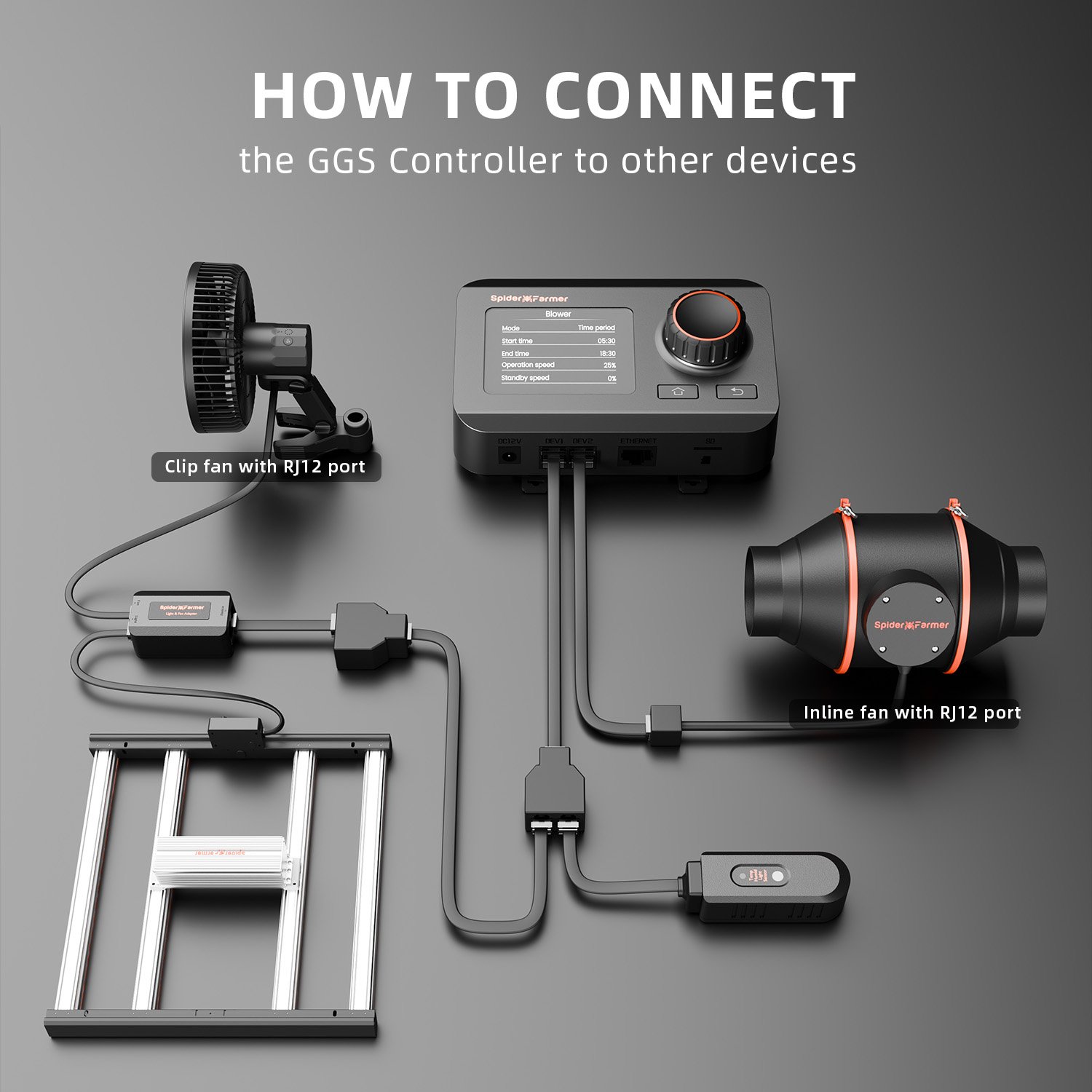

4. How to Control Clip Fans and Inline Fans

In the current controller interface, the “Fan” (Clip Fan) and “Blower” (Inline Fan) sections are not yet available and are expected to support only the next-generation models.

• • Key Difference:

    The next-generation Clip Fan and Inline Fan models will feature an RJ12 interface, while the current models do not have this port.

  • Solution Using the GGS AC5 Power Strip

    (Launching in the new year, stay tuned!)

    • 3.1 If you already own or are considering purchasing our Clip Fan or Inline Fan, you can use the GGS AC5 Power Strip to automate these devices. Additionally, our controller can also manage the power strip, so purchasing both kits together provides a more comprehensive automation setup.
    • 3.2 Why Use the GGS AC5 Power Strip Along with the Controller?
      • 3.2.1 For Those Who Prefer Traditional Control: The controller has physical buttons and knobs, making it easy for customers who prefer hands-on control without needing to rely on a smartphone. You can operate lights and the power strip just like traditional equipment, ensuring simple and reliable use.
      • 3.2.2 Multi-User Control: The controller allows multiple users to operate the setup without each person needing their own smartphone. In a household setup, for example, anyone can quickly operate the controller, making it convenient and efficient.
      • 3.2.3 Local Control: When the network is unstable, there’s a delay, or a phone isn’t convenient to use, the controller offers instant, local control. This option ensures smooth operation without relying on external connections.

5. Using the GGS AC5 Power Strip for Full Control and Automation

(Launching in the new year, stay tuned!)

Plug your devices into the GGS AC5 Power Strip, and with sensors installed on the power strip, you can control and automate each device as needed. The GGS AC5 Power Strip has 5 outlets, each of which can be controlled through the controller and app with specific settings for time and mode:

• • 5.1 Time Period Mode:

  • Set specific on/off schedules for each outlet. Choose exact times for each day of the week or create recurring daily schedules. This allows you to provide consistent light, air circulation, or other resources precisely when your plants need them.

• • 5.2 Time Cycle Mode:

  • Set power cycles to control when your devices turn on and off throughout the day. For example, you could set a fan to run for 1 hour, turn off for another hour, and repeat the cycle as needed. This is ideal for managing airflow, lighting intervals, or other timed needs in your grow room.

  • 5.3 Temperature Mode:

  • Control devices based on temperature. For example, if you plug a Clip Fan into an outlet set to Temperature Mode and specify it as a cooling device, the fan will automatically turn on when the temperature exceeds your target—keeping the environment stable without manual adjustments.

  • 5.4 Humidity Mode:

  • Easily manage humidity levels. If you connect a humidifier, set the outlet to Humidity Mode, and specify it as a humidifying device, the outlet will power on to increase humidity when levels drop below your desired range. This way, you can maintain optimal humidity for your plants without constant monitoring.

  • 5.5 CO₂ Mode:

  • Manage CO₂ levels by connecting a CO₂ device. Set the outlet to CO₂ Mode and specify whether it should add or vent CO₂. The outlet will activate based on your target CO₂ levels, giving you precise control over your grow room environment.

6. Other Settings

• 6.1 Sensor Calibration

• 6.1.1 Temperature Calibration: Adjust the temperature offset from -10°C to +10°C in 0.1°C increments.

• 6.1.2 Humidity Calibration: Adjust the humidity offset from -20% to +20% in 0.1% increments.

• 6.1.3 CO₂ Calibration: Adjust the CO₂ concentration offset from -200 ppm to +200 ppm in 10 ppm increments.

6.2. Screen Timeout

Set the controller screen to turn off after 1-10 minutes of inactivity, or select “Never” to keep it continuously on.

7. Keytone

Enable or disable button sounds.

8. Firmware Update

Upgrade firmware via SD card or over the network.

9. Factory Data Reset

Restore the device to its original factory settings.
